Main Features
4x10/100BaseTX,4x100BaseFX ports+2x1000BaseX
InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and
RSTP/STP for network redundancy
SMPv1/v2c/v3 for different levels of network management
Prot-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease
network planning
IGMP snooping for filtering multicast traffic
Easy network management through web browser, CLI,
Telnet /serial console, SNMP
Industrial-grade design with -40 to +75°C operating
temperature and redundant power inputs
Metal, IP40 protection,DIN-Rail mounting, wall mounting
Overview
The i610B series managed Industrial Ethernet switches are equipped with up to 8 Ethernet ports. Automatic alarm
through E-mail, relay output. inMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network
redundancy. RSTP/STP can increase system reliability and your network availability. Industrial-grade design
with -40 to +75°C operating temperature and redundant power inputs. The super hardware reliability is especially
suitable for industrial applications.
Features and Benefits
·Easy network management through web browser, CLI, Telnet /serial console, SNMP
·inMax Ring Protocol MAX Ring" (recovery time < 20ms) and RSTP/STP for network redundancy
·IGMP snooping for filtering multicast traffic
·Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
·QoS and ToS/DiffServ to increase determinism
·Port Trunk for optimum bandwidth utilization
·RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH
·SNMPv1/v2c/v3 for different levels of network management
·RMON for efficient network monitoring and proactive capability
·Bandwidth management prevents unpredictable network status
·Lock port function for blocking unauthorized access based on MAC address
·Automatic alarm through e-mail, relay output
Specifications
Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for Flow Control
Protocols:
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,
TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
SSH, SNMP Inform, LLDP, SNTP Server/Client
MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control:
IEEE 802.3x flow control, back pressure flow control
Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 1 Mbit
Interface:
Fiber Ports: 100Base-FX(SC/ST/FC connector)
1000Base-X (SFP slot)
RJ45 Ports: 10/100BaseTX auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 2 relay outputs with current carrying capacity of 1A@24V
LED:
System Led:SYS
Port Led:Copper: Link1~4, Act1~4
Fiber: Link/ Act 5,6,7,8,G1,G2
Power Led:PWR
Power Requirements:
Input Voltage: 24VDC (12 ~ 36VDC), redundant dual inputs
Input Current: MAX. <0.41A@24VDC,<10W
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 6-contact terminal blocks
Mechanical Properties:
Housing: Metal, IP40 protection
Dimensions: 60.2 x 112.5 x 138.5 mm
Weight: 750g
Installation: DIN-Rail mounting, wall mounting
Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years

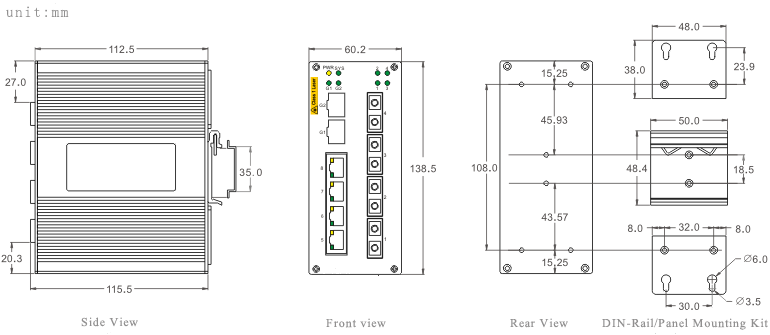

Dimensions
