Man Features
2x100BaseFX/1000BaseX (SFP slots) for uplink, 24 x 10/100M
BaseTX (PSE+Fast Ethernet) ports downlink
Provide up to 15.4watts per PSE port for remote devices
Support Proprietary Protocol "Max Ring" (recovery time < 20ms),
STP,and RSTP for network redundancy
Support VLAN, QinQ and QoS
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,
Easy network management through web browser,CLI,Telnet/serial console,Windows
utility and SNMP
Industrial-grade design with -40 to +75°C operating temperature and redundant power
inputs
Metal,IP40 protection
Overview
As Power Source Equipment, P3626 is deployed at the Ethernet access layer in small/medium enterprise, residential
area, campus, etc. The manageable P3626 series PoE switches can provide up to 8 PSE+Fast Ethernet downlinks
access interfaces (up to 15.4watts per port) with 2x1000BaseX/100BaseFX dual rate SFP uplinks.
P3626 PoE switches can offer power supply for PD devices such as wireless Access Point, IP phone and surveillance
camera. P3626 PoE switches utilize advanced microchips to ensure carrierclass stability and reliability, and can be
managed either locally or remotely via CLI, SNMP, Web and Telnet.
Features and Benefits
Ports
2x100BaseFX/1000BaseX (SFP slots) for uplink, 24 x 10/100M BaseTX (PSE+Fast Ethernet) ports downlink
PoE
·Comply with IEEE 802.3af standards
· Provide up to 15.4watts per PSE port for remote devices
High Reliability
·Support Proprietary Protocol "Max Ring" (recovery time < 20ms),STP,and RSTP for
network redundancy
·Support LACP to expand the bandwidth of a switch port,balance the traffic among all the
ports in link aggregation and enhance connection reliability.
Management & Maintainability
·Support SNMP v1/v2c1v3 and RMON MIB Group 1,2,3,9
Comprehensive Security
·Support 802.1X authentication
·Support MAC address authentication
Versatile QoS Policies
·0ffer powerful hardware ACL capability
·Support different priority criteria: DSCP priority,802.1p priority,Strict Priority(SP) and
Weight Round Robin(WRR)
·Support diversified flow-based QoS:rate limit,traffic shape,traffic statistics,and priority
marking
Specifications
IEEE 802.3af PoE
IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.1X for Authentication
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.3ac for VLAN Tag Frame Extension
IEEE 802.1p for Class of Service
IEEE 802.3ad for Port Trunk with LACP
Protocols
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,
TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
SSH, DHCP Option 82, SNMP Inform, LLDP, SNTP Server/Client
MIB
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control
IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 4094
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 2 Mbit
Interface
Fiber Ports: 100BaseFX / 1000BaseX (SFP slots)
RJ45 Ports: 10/100BaseTX auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 1 relay outputs with current carrying capacity of3A@30VDC or 3A@240VDC
Power Requirements
Input Voltage: 48 VDC (36 ~ 72VDC) or 110/220 VAC (85 ~ 265V)
Input current: 0.1A@48VDC,5W
Input current(Max): 0.25A@48VDC,12W(with no PD)
Input current(Max): 2.5A@48VDC,135W(with 8 PD)
Input current(Max): 5.4A@48VDC,258W(with 16 PD)
Input current(Max): 8A@48VDC,382W(with 24 PD)
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 5-contact terminal blocks
Physical Characteristics
Housing: Metal, IP40 protection
Size: 440*281*45 mm
Weight: 3.35kg
Installation: 19-inch 1U rack installation
Environmental Limits
Operating Temperature:
Standard Models: 0 to 60°C (32 to 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 60950-1
EMS:
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years

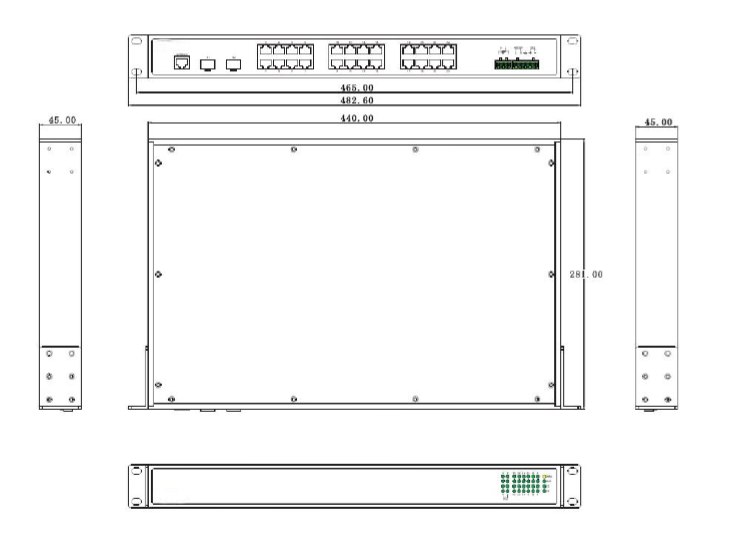

Dimensions
UNIT(mm)
